Electric Bus Technology: Components, Drivetrain and Working Principle

A passenger-friendly technical explanation of how stored electrical energy moves an electric bus—and how charging, braking, cooling and auxiliaries fit together.

Key takeaways
  • The traction battery stores electrical energy; the battery-management system monitors and protects the pack.

  • Power electronics control the energy delivered to the traction motor, which turns electrical energy into wheel torque.

  • Most battery-electric drivetrains use a simpler reduction stage than a multi-speed combustion drivetrain, although layouts vary.

  • Regenerative braking can return part of the vehicle’s kinetic energy to the battery, while friction brakes remain essential.

  • Thermal management, HVAC, steering, air systems, lighting and low-voltage electronics all draw energy and affect range.

  • Electric-bus specifications vary by model; use model-specific information when exact component layouts or performance figures matter.

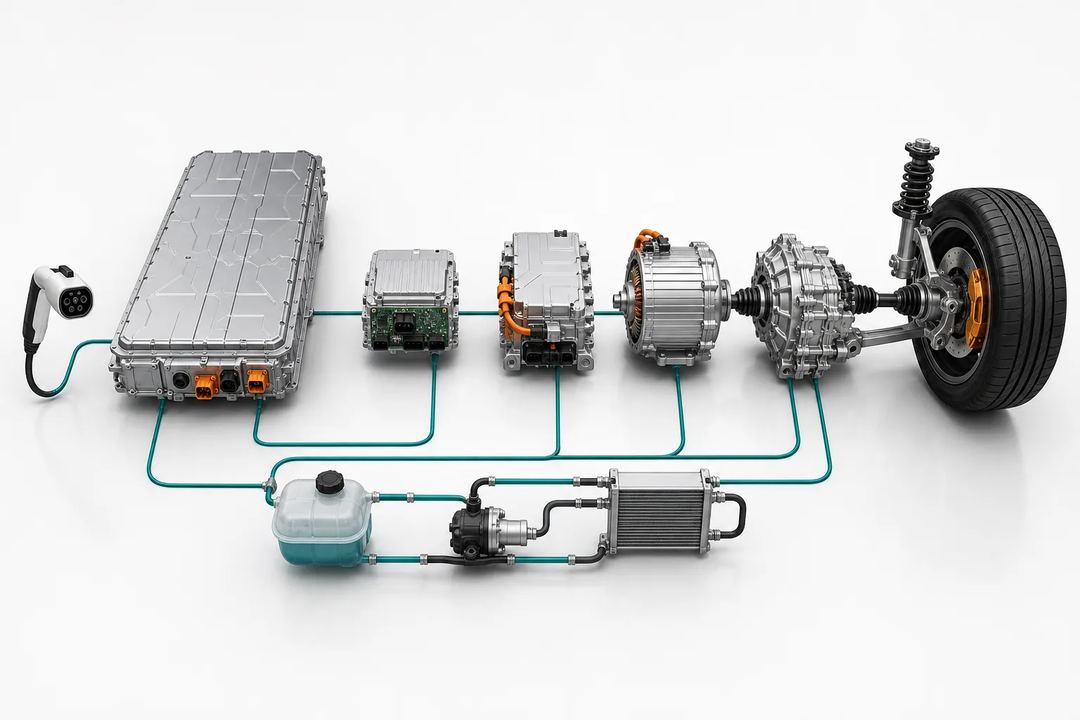

Conceptual electric-drivetrain component layout; this is an educational illustration, not a coach-specific engineering schematic.

The energy flow in one line

Electricity enters through the charging interface, is stored as direct-current energy in the traction battery, is controlled and converted by power electronics, drives the electric motor and reaches the wheels through the reduction gear, differential and axles. When the bus slows, regenerative braking can reverse part of that flow and return energy to the battery.

Traction battery and battery-management system

The traction battery is the main energy store. It is assembled from cells and modules, protected by a strong enclosure and connected to high-voltage equipment. Usable energy is lower than the pack’s full theoretical capacity because control systems keep safety margins at high and low state of charge.

The battery-management system monitors voltage, current, temperature and state of charge, balances cells and coordinates protection limits. If conditions move outside permitted ranges, the system can restrict power or isolate the high-voltage circuit.

Power electronics and the traction motor

The battery supplies direct current, while many traction motors operate with controlled alternating current. The inverter and power-electronics controller regulate this flow so the motor produces the required speed and torque. Driver demand, vehicle speed, battery limits and traction conditions all influence the command.

The traction motor converts electrical energy into mechanical rotation. Electric motors can produce useful torque from low speed, which suits frequent starts and smooth acceleration. The exact motor type, number and location depend on the vehicle design.

Reduction gear, differential and axles

The motor typically spins faster than the wheels, so a reduction gear lowers speed and multiplies torque. A differential then lets the driven wheels rotate at different speeds while cornering. Some designs package these components in an integrated electric axle; others use a separate central motor and final drive.

Regenerative and friction braking work together

When an electric bus slows, the traction motor can operate as a generator and convert part of the vehicle’s kinetic energy into electrical energy for the battery. The amount recovered varies with speed, battery state of charge, temperature, road grip and the braking request. Regeneration reduces energy loss, but it cannot recover all the energy used to move the bus.

Friction brakes remain essential. They provide braking force when regeneration is limited, hold the vehicle at rest and support predictable stopping across different conditions. Control software blends regenerative and friction braking so the driver receives a consistent response. Our electric bus range guide explains why terrain and operating conditions still affect energy use.

A battery-electric coach packages the high-voltage drivetrain together with familiar vehicle systems and passenger equipment.

Thermal management is a core system

Batteries, motors and power electronics operate best within controlled temperature ranges. Pumps, valves, heat exchangers, coolant circuits and control software move heat away from components or warm them when conditions require it. Cabin air conditioning is another major thermal load, especially in very hot or cold weather.

Auxiliaries keep the bus functional

System

What it does

Why it matters to energy use

DC/DC converter and low-voltage battery

Supplies lighting, controls, communications and other low-voltage equipment.

The high-voltage battery must support these loads through conversion.

HVAC

Heats, cools and ventilates the passenger cabin.

Demand changes with weather, occupancy and door openings.

Steering and air systems

Supports steering assistance, suspension, doors and braking functions depending on design.

Pumps and compressors consume energy whenever required.

Telematics and controls

Monitors vehicle condition, route operation and faults.

Continuous electronics are small individually but part of total auxiliary demand.

Charging, communication and safety checks

Charging is a controlled exchange between the vehicle and the charger, not simply electricity flowing through a cable. The systems communicate about permitted voltage, current, temperature and charging rate before and during the session. Actual charging power is limited by the charger, connector, vehicle, battery state of charge, temperature and control strategy, so a charger’s maximum label is not a promise of one sustained rate.

  • High-voltage interlocks help detect an opened connector or circuit.

  • Contactors connect or isolate the traction battery from the drivetrain.

  • Insulation monitoring checks for unintended electrical paths.

  • Thermal or smoke detection may contribute to fault response, depending on the vehicle design.

  • Maintenance procedures require trained personnel and controlled high-voltage isolation.

These are operational systems that passengers do not need to manage. For journey planning, use the route and timing information shown in our live booking flow rather than trying to infer a charging plan.
